OzSpy 9ch 5MP CCTV NVR 60MBS and P2P Remote View
This NVR boasts great quality, a three year warranty, and up to 5MP recording. Connect this with you favourite OzSpy IP camera and you have a great system.

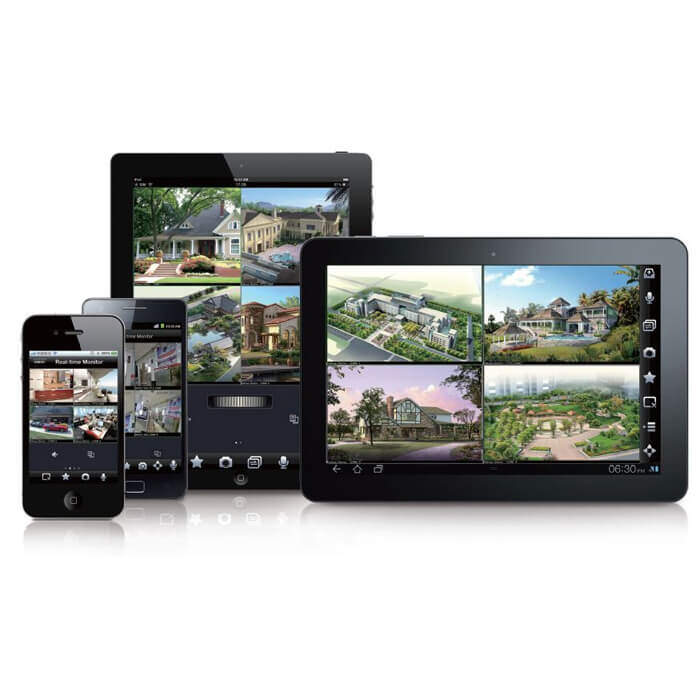

Did you know that OzSpy recorders have a website login, this means you can check your cameras from anywhere you have a web browser. You can access our systems directly, via laptop, PC, mobile phone, and tablet giving our recorders the most options for remote view, and it’s simple to set up.
NVR Features
5MP resolution
Motion detection
Push notifications on motion
Remote view
Audio
Onvif for compatibility with most cameras
Non PoE
IP
12v DC
3 year warranty
Works with:
OzSpy IP Cameras
HikVision Cameras
Dahua Cameras
Onvif Cameras
Specifications
System
Main Processor ARM Cortex A7 Processor
Operating System Embedded LINUX
Video
Input 9CH (2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc)
Output 1 VGA, 1 HD
Audio
Output 1 Port 3.5mm(Linear, 1kΩ)
Audio Bit Rate 64kbps
Audio Compression standard G711u, G711a, G726
Alarm
Sensor Input NO
Output NO
Motion Detection 9 Channel, MD Zones: 396 (22 × 18)
Trigger Events Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
Display
HD Output1Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
Digital Zoom YES
OSD Camera Title, Time, Recording, Motion Detection
Recording
Video Compression H265/H264/H265+/H264+
Resolution 5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480)
Record Rate PAL :5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
NTSC: 5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
Record Mode Manual\Timer\Motion Detection
Playback & Backup
Local Sync Playback 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability 4CH 1080P@20fps
Remote Sync Playback YES
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast Play, Digital Zoom
Backup Mode USB Device/Network
Network
Interface 1 RJ45 10M/100M Adaptive Ethernet Interface
Incoming Bandwidth 60MB
Network Functions TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif Version Support Onvif 2.4
Web Browser IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software Support Windows 7/ Windows 8/Windows 10
Cloud Support(P2P) Yes
Smart Phone iPhone, iPad, Android, Android Pad
Storage
Interface Type 1 SATA Interface
Capacity Up to 8TB capacity
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek
USB Interface2 USB 2.0 Interfaces
Power Supply DC12V/2A
Working Environment -10~55℃/10~90%
Dimension(W×D×H) 260*215*43(mm)
Weight 2.0KG (without HDD)
NVR Recorder Manual
➲Download Manual Here
